Heavy duty electronic truck scales axle weighing system In Motion Truck Scale 80tons

A heavy-duty electronic truck scales axle weighing system is a specialized weighing system designed to accurately measure the weight distribution and individual axle weights of trucks and other large vehicles. It is specifically used to determine if a vehicle complies with legal weight limits and to ensure proper load distribution for safety and regulatory purposes.

Product details and combination:

It is a split weighing system for truck, it composed of split scales and a PDA;Is a brand new solution for vehicle weight management

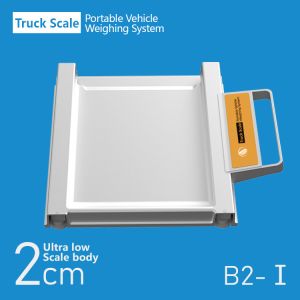

1. Split scales
Easy deploy on ground

Battery working time: 100 hours
Size 95cm*50cm*6cm

Weight 22.5kg
Precision: Keli load cell 0.2%
Wireless connection: bluetooth WIFI
Low ground clearance: 2cm

2. PDA device (personal digital assistant)
GPS
Camera
CPU 4 core
APP & Andriod system
Split weighing
Easy to operate
Overload warning
Eccentric load warning
Print function

Data sheet

Features:
Different truck scale combinations can be set up according to different truck types and axles

• Tandem-Axle Truck Scale: Tandem-axle trucks have two axles grouped closely together. For this configuration, multiple weighing pads or scales are placed under each axle to measure the weight of each axle separately. The weight readings from both axles are usually combined to determine the total weight of the truck.

• Tri-Axle Truck Scale: Tri-axle trucks have three axles, with the middle axle positioned farther back. In this setup, weighing pads or scales can be placed under each axle, similar to the tandem-axle setup, to obtain individual axle weights. The readings from all three axles are combined to calculate the total weight.

• Multi-Axle Truck Scale: For trucks with more than three axles, such as quad-axle or quint-axle configurations, additional weighing pads or scales are added under each axle for accurate weight measurement. The weight readings from all the axles are then summed up to determine the total weight of the truck.



Usage scenario
In this example scenario, the truck is a six-axle dual-drive semi-trailer.There are 10 double wheels and 2 single wheels

FAQ

Q1: What is PDA and its use?

PDA stands for Personal Digital Assistant. It is a handheld electronic device that combines the functionality of a mobile phone, organizer, and other features such as email, web browsing, and note-taking capabilities.

AIDA PDA device installed with Andriod system, and unique APP for the split weighing scales system.
with the function of GPS locating
built-in thermal printer for lable printing
Camera for scanning and photographing,
CPU 4 core to keep smooth operation
Memory: 1G RAM+8G ROM for data store and management.
